Cabling
Introduction
I wrote this to keep a track of different cables. I have them here to
share.
RJ45 EIA/TIA-T568-B
|
RJ45 EIA/TIA-T568-A
preferred
|
|
|
|
|
10/100BaseT Xover
|
Note how one end is T-568A and the other is T-568B |
|
ISDN Xover
|
There are a few different ISDN pin outs used on RJ45.
This one works on CISCO equipment.
|
|
|
|
ISDN Loopback
|
I have made many of these to test equipment, and to
set up labs to simulate out going and incoming ISDN calls, I have
also used them on VoIP Gateways to convert H.323 to and from SIP. |
|
|
|

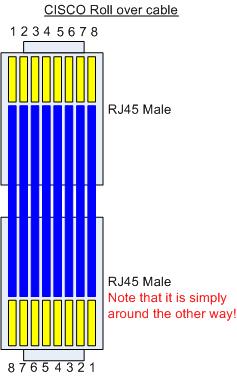

CISCO Stuff
|
|
|
|
|
|

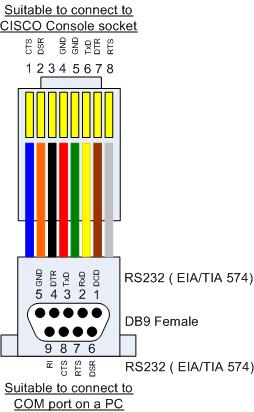

RS-232
|
|
|
|

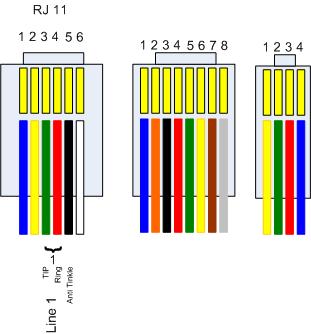

ACMA Colour codes
|
|
|
|
|
|
